0.75-7.5KW VFD Solar Inverter 3P DC 200-400V Input 220V Output Frequency Converter Water Pump Driver MTTP Speed Control

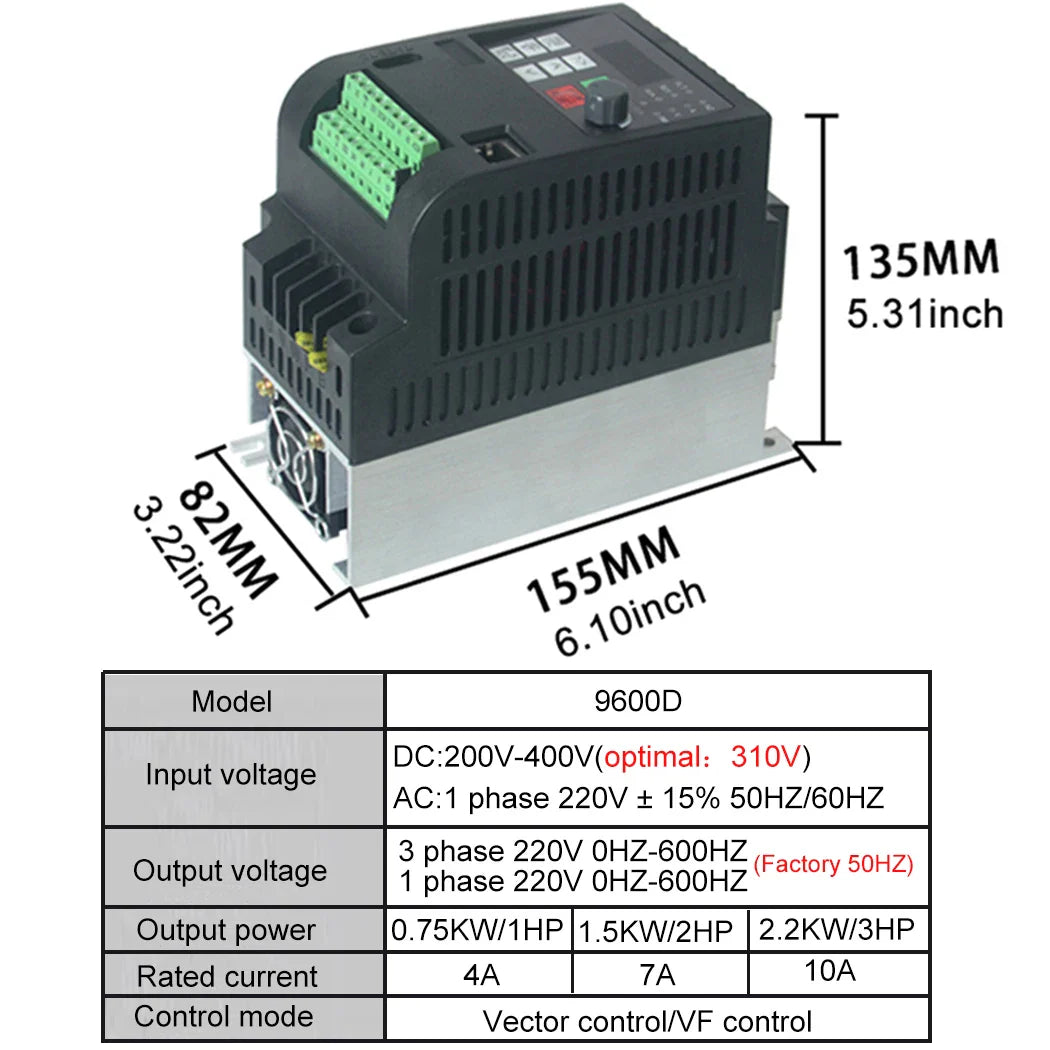

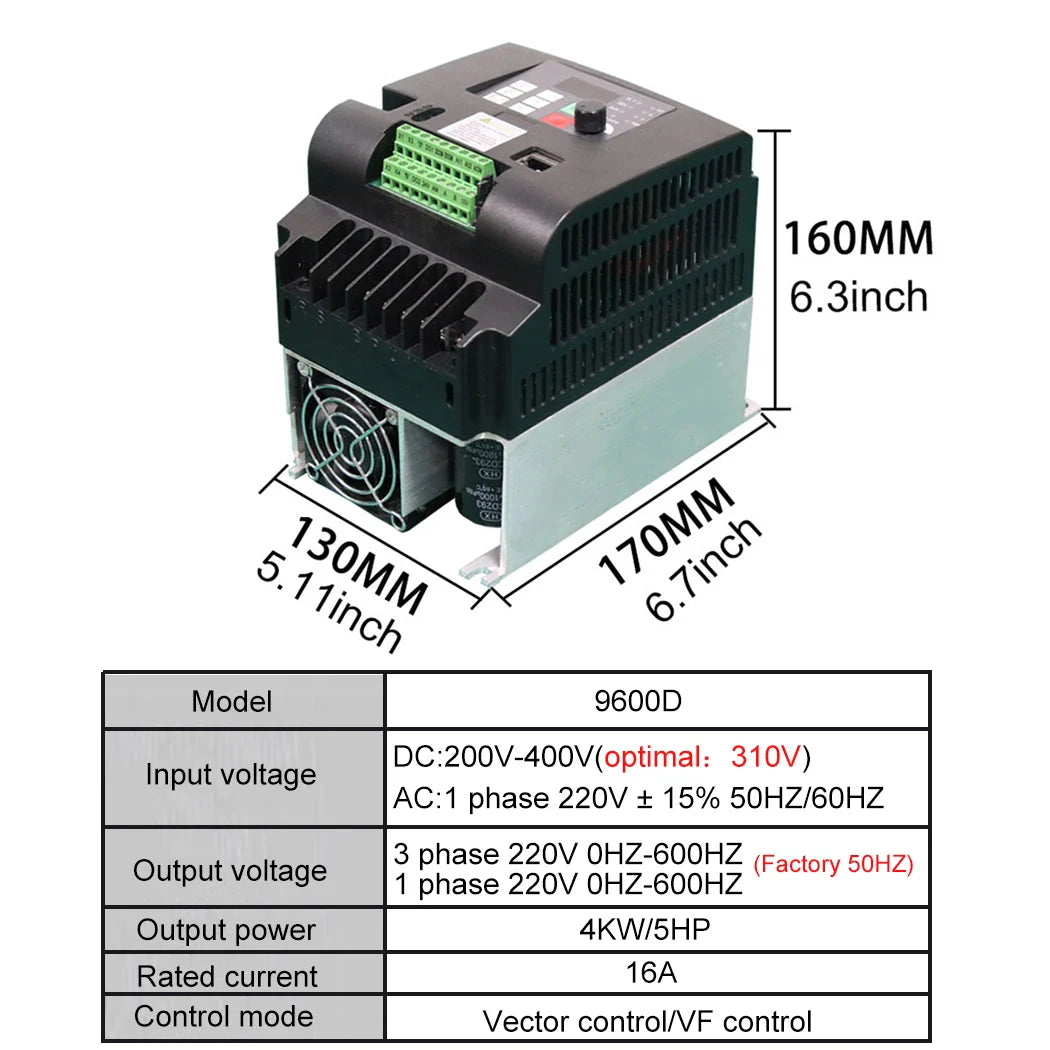

SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Model Number: NF-9600
Origin: Mainland China
Output Current: 4A/7A/10A/16A/20A/30A
Output Frequency: 0-600HZ
Output Type: triple

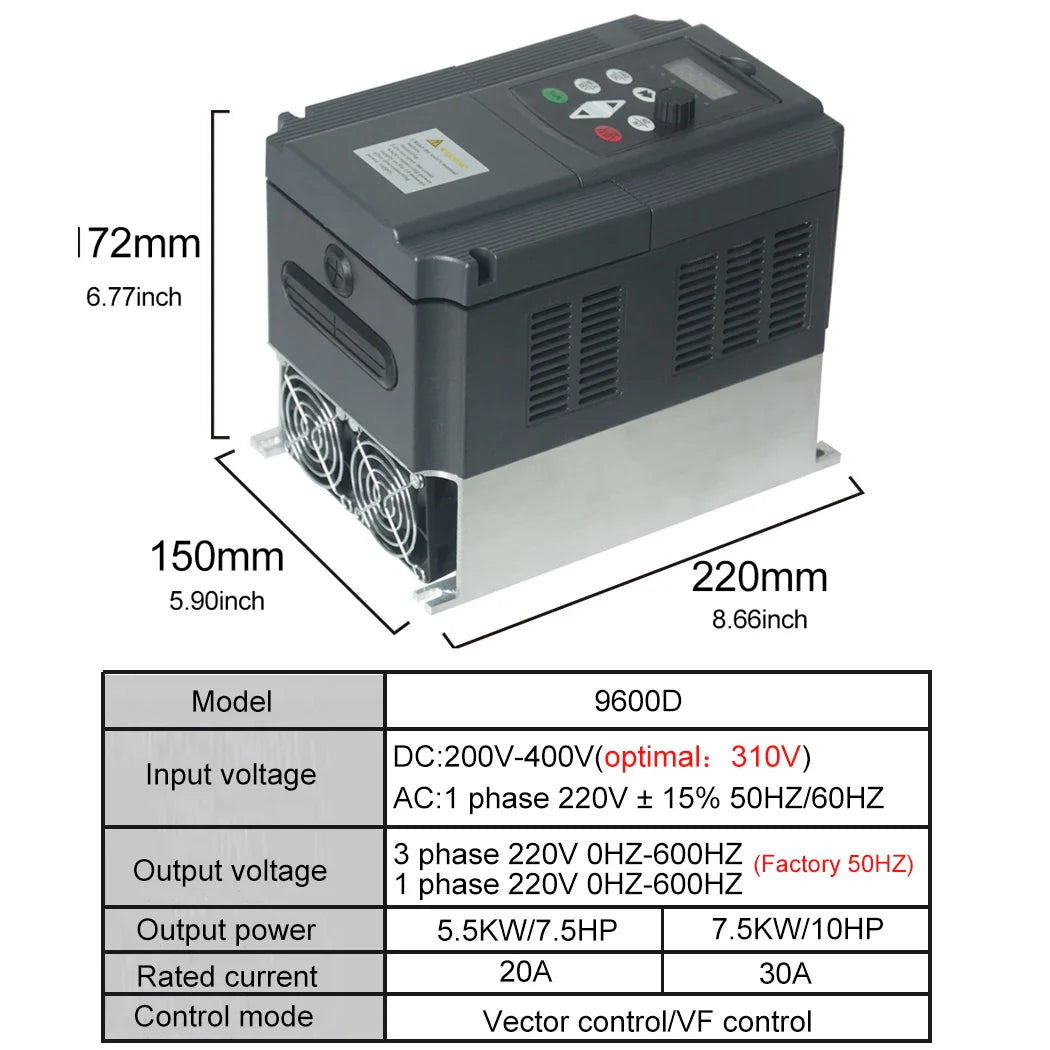

Size: 150mm*220mm*172mm
Type: DC/AC Inverters
Weight: 1.6KG
is_customized: Yes
Precautions for purchase:
1. The default frequency of this inverter is 0-50HZ, and the reverse function is closed by default. If you need to change it, please contact us.
2. Please try to meet the recommended voltage for DC input, otherwise the conversion power of solar energy will be reduced.
3. DC and AC power can not be used at the same time, otherwise it will damage the inverter and solar panels
4. The solar inverter is only suitable for solar panels to generate power to drive fans, water pumps and other loads. It can be selected according to the voltage and power of the motor. If the depth of the submersible pump exceeds 30 meters, it is recommended to zoom in 1-2 levels.
5. Regarding how to configure solar panels (assuming that the solar panels are configured as 24V 300W and the motor power is 4KW), such as 220V motors, the total voltage of solar panels in series meets DC 200V-400V (it is best to configure 320V), voltage calculation method: Take the best configuration 540V as an example, 540V/24V≈23. The power calculation method is: 1.2 times larger than the motor power, the solar panel power is 300W, the motor is 4KW, (4000X1.2)/300=16 (then the best configuration is to use 23, take the maximum value)
We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:
01 V/F control, vector control and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;

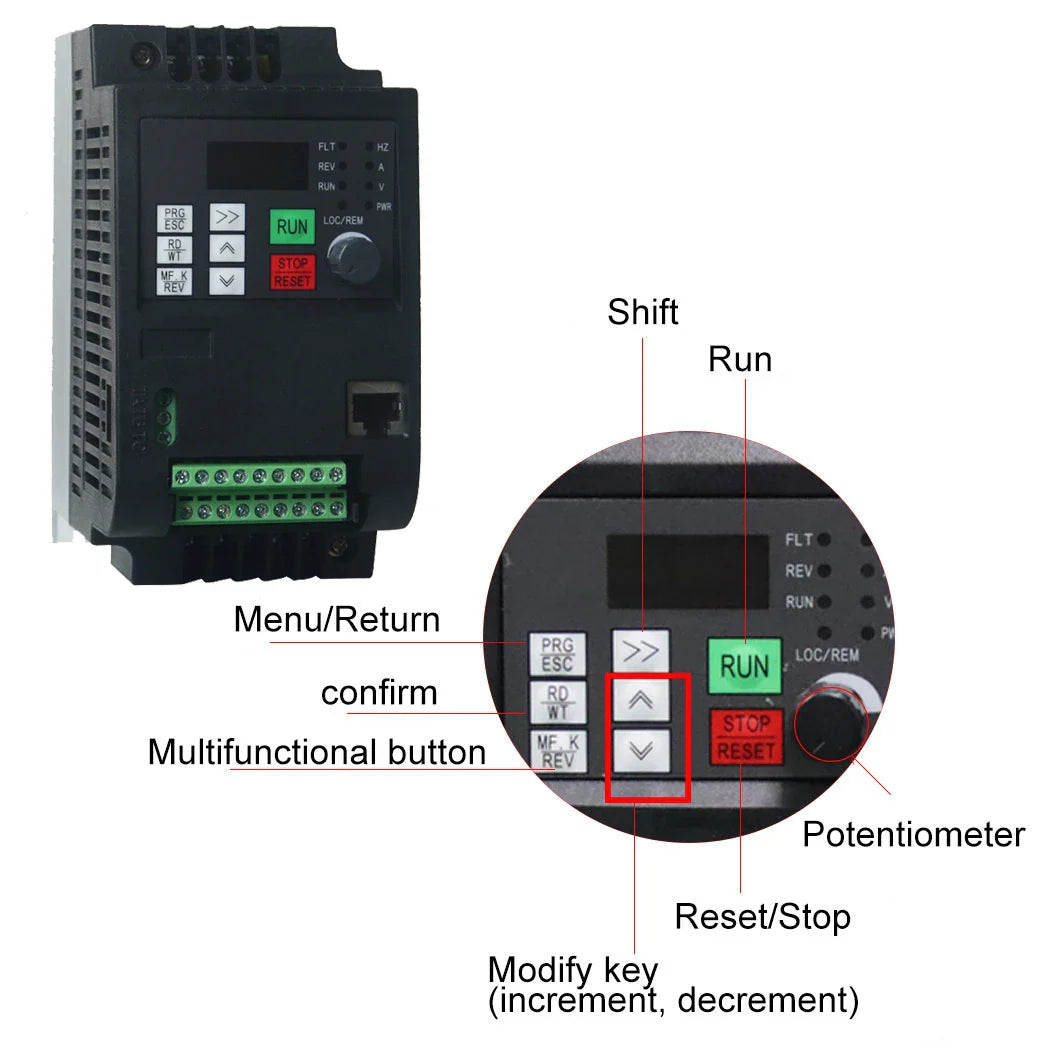

04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.
